Introduction of Multi-Layer Co-extrusion Technology for Film Blowing Machine

Table of Contents

1. What is Multi-Layer Co-extrusion Technology?

2. Key Advantages of Multi-Layer Films

3. How the Multi-Layer Co-extrusion Film Blowing Machine Works

4. Critical Technical Parameters and Specifications

5. Applications of Multi-Layer Co-extruded Films

6. Frequently Asked Questions (FAQ)

1. What is Multi-Layer Co-extrusion Technology?

Multi-layer co-extrusion technology is an advanced manufacturing process that allows for the simultaneous extrusion of two or more distinct polymer layers, which combine to form a single, high-performance film structure. This process is central to the modern Film Blowing Machine, enabling the production of films with tailored properties that a single material cannot achieve. By combining different polymers—such as polyethylenes (LDPE, LLDPE, HDPE), polyamide (PA), ethylene vinyl alcohol (EVOH), or tie layers—manufacturers can create films with specific barriers, strengths, and sealing characteristics. This technology has revolutionized packaging, moving beyond simple monolayers to sophisticated, multi-functional solutions.

2. Key Advantages of Multi-Layer Films

The primary benefit of using a multi-layer co-extrusion Film Blowing Machine is the ability to engineer films with precision. Key advantages include:

• Enhanced Barrier Properties: By incorporating a barrier resin like EVOH or PA, films can effectively block oxygen, moisture, aromas, and flavors, significantly extending the shelf life of food products.

• Material Optimization and Cost Efficiency: Expensive barrier materials can be sandwiched between less expensive bulk layers (like PE or PP), reducing overall material cost while maintaining high performance.

• Improved Mechanical Strength: Combining layers with different properties can result in films with superior puncture resistance, tear strength, and durability.

• Excellent Sealing Capabilities: A dedicated sealing layer (e.g., LDPE or EVA) can be used to ensure strong, consistent heat seals, while the other layers provide structural support.

• Sustainability: Multi-layer structures can be designed to use less total material or incorporate recycled content in specific layers without compromising the film's primary function.

3. How the Multi-Layer Co-extrusion Film Blowing Machine Works

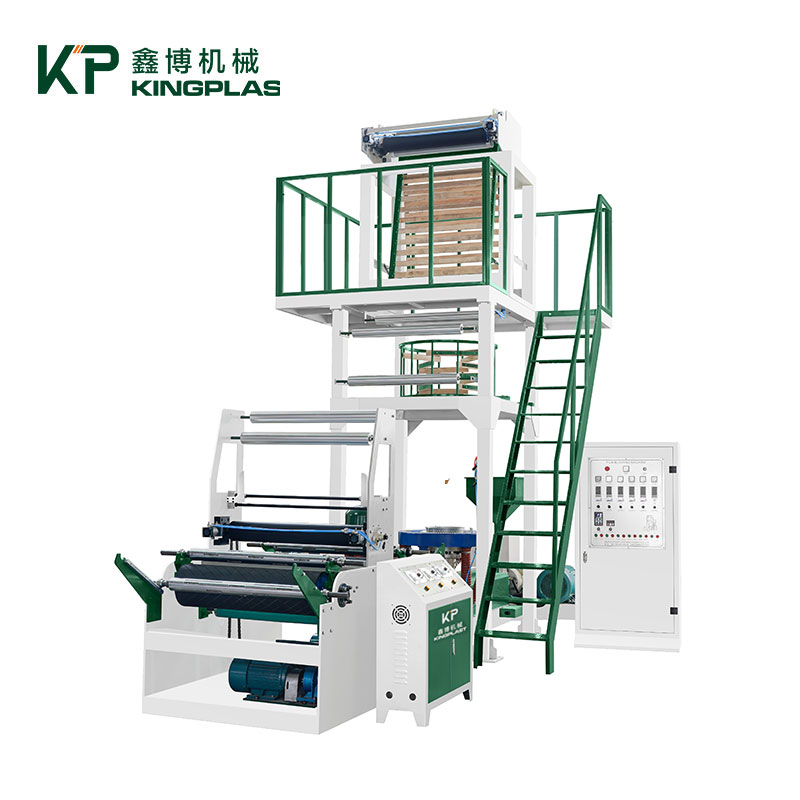

A multi-layer Film Blowing Machine is a complex system integrating several extruders into a single die. Here is a simplified breakdown of the process:

1. Individual Extruders: Separate extruders plasticize and melt different polymer materials. Each extruder is responsible for one layer of the final film structure.

2. Feedblock or Multi-Layer Die: The molten polymers from each extruder are channeled into a specialized component. A feedblock combines the layers before they enter a single manifold die, while a multi-layer spiral die allows each material to flow through its own spiral mandrel before merging.

3. Bubble Formation: The combined melt is extruded through a circular die gap, forming a tubular bubble. Air is injected to inflate the bubble, controlling the film's diameter and transverse direction (TD) orientation.

4. Cooling and Haul-Off: The bubble is cooled by an air ring and collapsed into a flat film by nip rollers. The speed of the haul-off determines the machine direction (MD) orientation and final film thickness.

4. Critical Technical Parameters and Specifications

When selecting or operating a multi-layer co-extrusion film blowing line, understanding its technical parameters is crucial for achieving the desired film quality.

Key Parameters List:

• Number of Layers: Standard configurations are 3-layer, 5-layer, 7-layer, or even up to 11 layers for highly specialized applications.

• Extruder Specifications: Each extruder is defined by its screw diameter (D, e.g., 45mm, 65mm) and Length-to-Diameter ratio (L/D, e.g., 30:1, 33:1). A higher L/D ratio ensures better melting and mixing.

• Output Capacity: Measured in kilograms per hour (kg/h), this indicates the total potential production rate of the line.

• Layer Thickness Control: Precision of the individual layer thickness ratio, typically controlled by feedback systems from melt pumps or gear pumps.

• Die Diameter and Gap: The die diameter determines the layflat width, and the die gap influences film thickness control.

The table below outlines a typical specification for a 3-layer film blowing machine:

5. Applications of Multi-Layer Co-extruded Films

The versatility of films produced by multi-layer co-extrusion technology makes them suitable for a wide range of industries:

• Food Packaging: Fresh meat (vacuum packaging), cheese, snacks, and liquid packaging requiring high oxygen and moisture barriers.

• Agricultural Films: Greenhouse films with UV resistance and anti-drip properties.

• Industrial Packaging: Heavy-duty sacks, shipping bags, and protective packaging.

• Medical Packaging: Sterile barrier packaging for medical devices.

6. Frequently Asked Questions (FAQ)

Q1: What is the maximum number of layers possible with modern multi-layer film blowing machines?
While 3-layer and 5-layer machines are most common, advanced technology now allows for the production of films with 7, 9, or even 11 layers. This allows for incredibly precise material placement, such as using multiple thin barrier layers or incorporating recycled content in specific, non-critical layers.

Q2: Can different types of plastics, which don't normally bond, be used together in co-extrusion?
Yes, this is a common practice. To bond incompatible polymers (e.g., Polyethylene to Polyamide), a special adhesive polymer known as a "tie layer" or "bonding layer" is co-extruded between them. This tie layer has molecular compatibility with both materials, creating a strong, delamination-resistant bond.

Q3: How is the thickness of each individual layer controlled during production?
Modern multi-layer film blowing machines use sophisticated control systems. The most precise method involves using melt pumps (or gear pumps) on each extruder. These pumps provide a constant, pulseless volumetric output, allowing for exact control of the volume of polymer contributing to each layer, regardless of variations in melt pressure or viscosity.
